The lathe is one of the oldest and most essential tools in any machine shop. Often referred to as “the mother of all machine tools,” it’s used to create precise parts by rotating a workpiece against a cutting tool.
While mills move the tool around the part, lathes rotate the part itself, enabling the shaping of cylindrical features with extremely high accuracy.

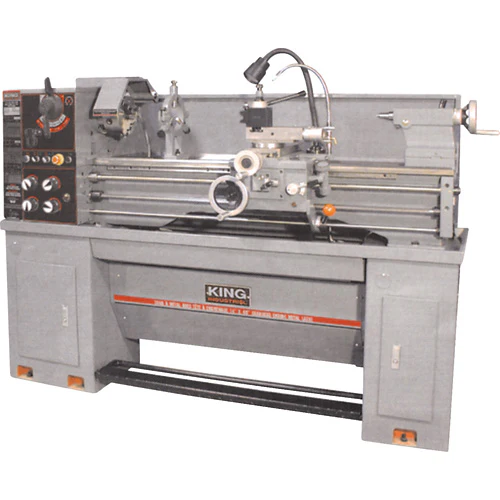

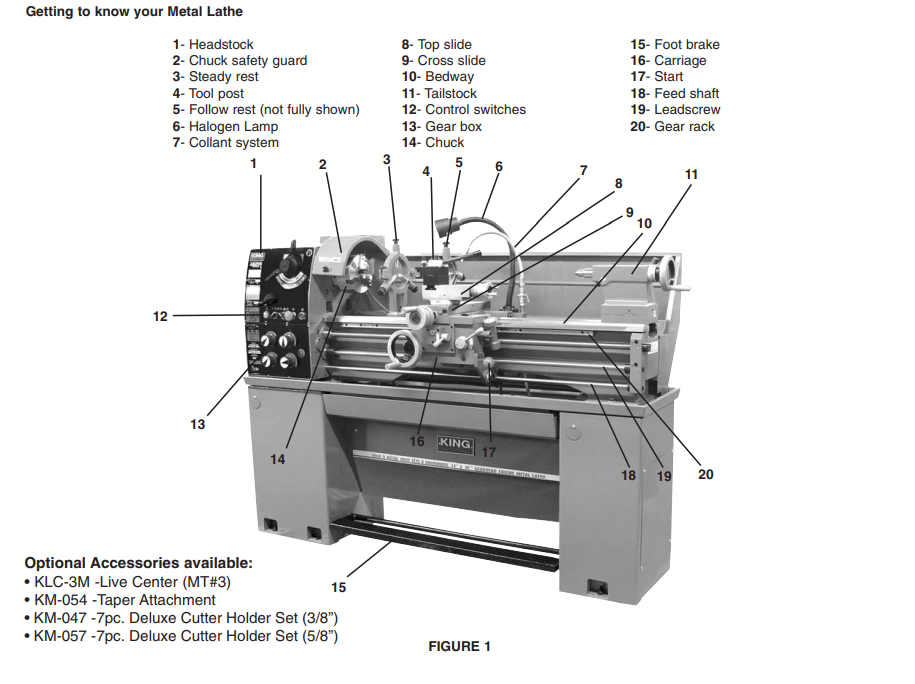

The King KC-1440ML engine lathe, used in our shop, is a versatile and powerful machine capable of handling a variety of materials, from aluminum and plastics to steel and brass. It features a 14" x 40" travel offering enough capacity for both short precision parts and longer shafts. Equipped with variable speed control (70-2000 RPM), power feeds, and quick-change gearboxes, it allows for a wide range of operations as listed below.
In the Brunsfield Centre, our lathes are equipped with digital readouts (DROs) for accurate and repeatable dimensions, and a full set of tooling that includes parting blades, knurling tools, boring bars, and threading tools. Whether you're facing off rough stock, turning down a shaft to exact diameter, drilling and reaming a concentric hole, or cutting internal threads, the lathe is the go-to machine for round and rotationally symmetric parts.
This guide will walk through how lathes work, the fundamental operations they perform, tool selection, part setup, and what to watch for during machining. Mastering the lathe is essential for anyone working in metal fabrication, prototyping, or mechanical design.
How the Lathe Works
A lathe operates by rotating the workpiece while a stationary cutting tool is fed into it. Material is removed by the shearing action of the cutting tool as it engages the spinning part. This process allows for precise shaping of cylindrical or symmetrical components such as shafts, bushings, threads, and internal bores.
Key Components
Spindle
The spindle is powered by an electric motor and rotates the workpiece. It can run at various speeds, which are selected based on the diameter and material of the stock.
Chuck
A 3-jaw chuck, also known as a self-centering chuck, is one of the most common types used on lathes. It has three jaws that move simultaneously when a chuck key is turned, thanks to an internal scroll mechanism. This makes it ideal for quickly clamping round or hexagonal workpieces with minimal effort. Because the jaws center automatically, setup is fast and convenient, which is useful for repetitive tasks. However, 3-jaw chucks generally offer lower precision compared to other types, with typical runout tolerances in the range of 0.001 to 0.003 inches. They also can't hold irregularly shaped or non-symmetrical workpieces.

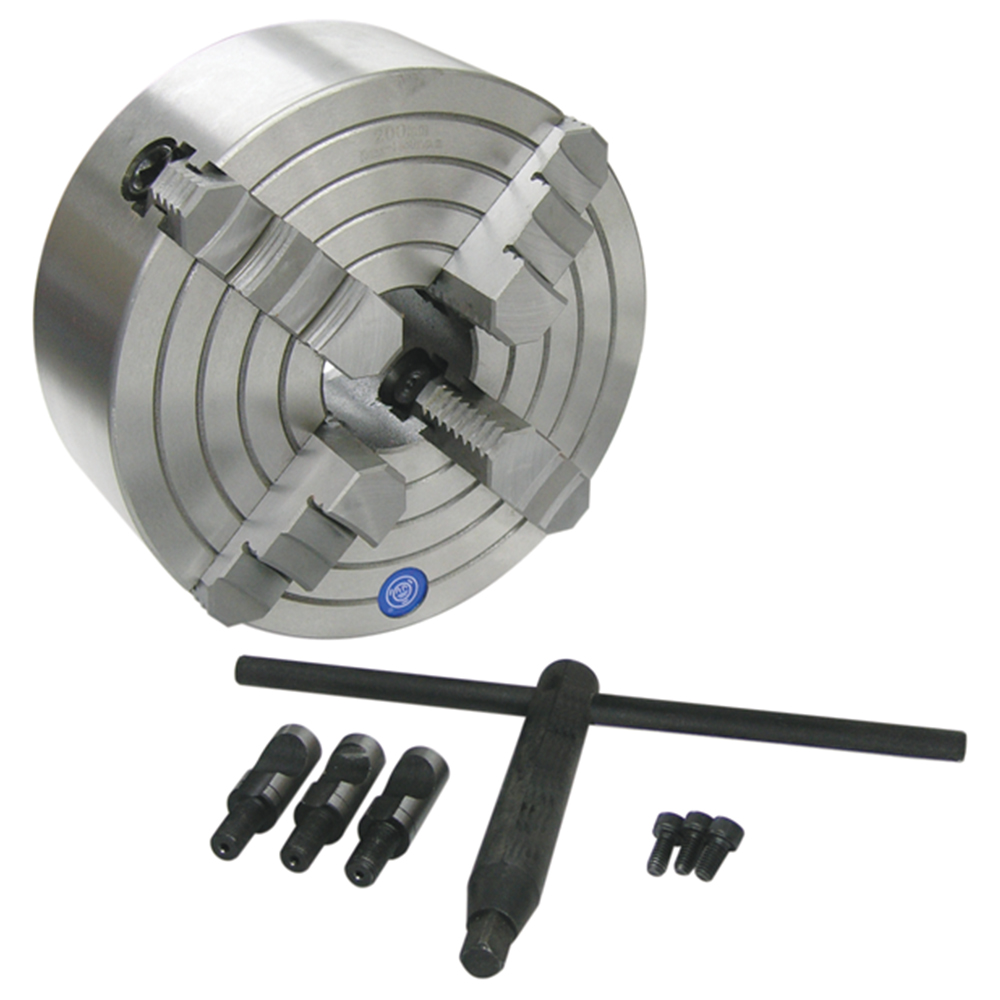

In contrast, a 4-jaw chuck has four jaws that move independently of one another. This allows the operator to hold a wide variety of shapes—round, square, rectangular, or even irregular—by adjusting each jaw separately. It’s especially useful when higher accuracy is needed, as the operator can manually dial in the workpiece using an indicator. The 4-jaw chuck also enables eccentric turning, where the workpiece is intentionally offset from the center axis. However, the tradeoff is that setup takes significantly more time and requires more skill, since each jaw must be adjusted individually to center the part.

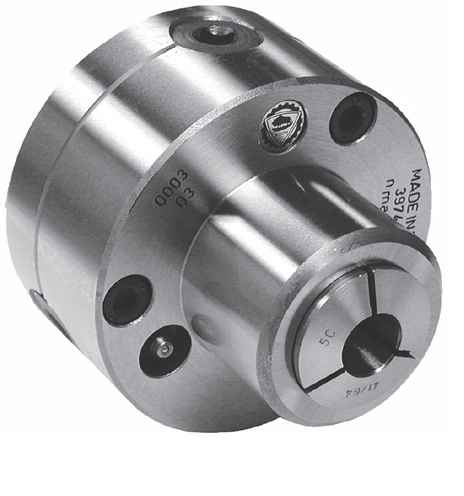

A collet chuck offers another alternative, particularly when precision and grip strength are critical. Collets are split sleeves that contract around a workpiece when tightened, providing uniform pressure and excellent concentricity. They’re typically used for smaller, round workpieces and come in specific sizes, meaning the fit must match the diameter of the part closely. Collet chucks excel in high-precision, high-speed work such as in CNC machining or production environments, but they are less versatile because they can’t accommodate irregular shapes or a wide range of part sizes without changing the collet.
Each chuck type serves a different purpose depending on the shape of the workpiece, the required precision, and the time available for setup. Ask a staff member which chuck type is right for you, if necessary we will change the chuck for you do not change it yourself!
Tool Post & Carriage
The tool post is the part of the lathe that holds the cutting tool and allows for precise positioning during machining. In many modern lathes, a dovetail quick-change tool post is used, which allows operators to rapidly swap between different tool holders without needing to realign each tool manually. The dovetail design ensures a secure and repeatable fit, locking tool holders into place with a cam-style lever. This setup improves efficiency, especially in a job shop environment where multiple tools are used frequently. The tool post can also be rotated and locked at various angles, enabling angled cuts or threading operations.
Tool holders are the attachments that fit into the tool post and securely clamp the cutting tools, such as turning bits, boring bars, or parting tools. Each holder is designed to present the tool at the correct height and orientation relative to the workpiece. In a quick-change system, each tool holder can be pre-set to the correct cutting height using a built-in adjustment screw, typically aligning the tool tip with the lathe’s center height. This greatly reduces setup time and improves repeatability across different operations.
The carriage is the main assembly that moves the cutting tool along the length of the bed. It consists of the saddle (which rides on the bedways), the cross slide (which moves the tool perpendicular to the bed), and the compound slide and tool post assembly mounted on top. The carriage can be moved manually using the handwheel or automatically using the power feed, enabling smooth, consistent cuts during turning. It supports and guides the cutting tool under controlled feed rates, playing a crucial role in determining surface finish and dimensional accuracy.
Compound Slide
The compound slide on a lathe is a small, adjustable platform mounted on top of the cross slide, used for fine angular cuts and taper turning. It can be swiveled to a specific angle using the graduated protractor scale at its base, allowing the cutting tool to advance along an angled path rather than just straight in. To use it, first loosen the base lock and rotate the slide to the desired angle, then re-tighten it securely. The handwheel on the compound slide is then used to manually advance the tool with precision. This is particularly useful when cutting short, accurate tapers. Proper adjustment and tight locking are essential to avoid chatter and maintain accuracy during operation.
Tailstock
The tailstock on a lathe is used to support the free end of a long workpiece, assist in drilling operations, or hold tools such as a center, drill chuck, or boring bar. To use it, first slide the tailstock along the bed to the desired position, then lock it in place using the clamping lever or locking nut. Insert the appropriate tool into the tailstock's Morse taper spindle—such as a live center for turning between centers or a drill bit for drilling. Use the handwheel to advance or retract the spindle, carefully feeding the tool into the work. Always ensure the tailstock is properly aligned with the headstock for accurate operation, and tighten all locks before beginning any cutting or drilling process.
Digital Readout (DRO)
Most of the machines in the Brunsfield Centre are equipped with DRO's.

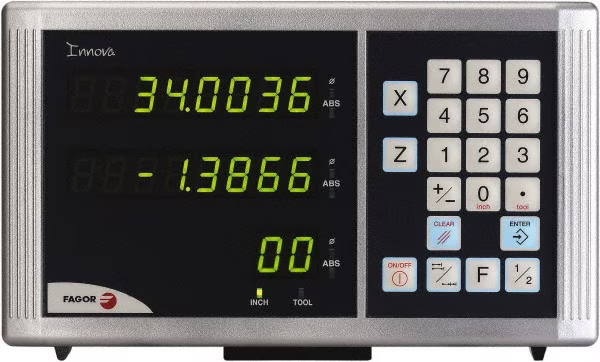

The Digital Readout (DRO) system on our lathes tracks the position of the cutting tool along the X-axis (in/out, toward the spindle center) and the Z-axis (left/right, along the bed). This system greatly improves precision and repeatability, especially for tasks like turning to a specific diameter or accurately spacing multiple features. Each axis is equipped with a linear encoder that measures tool movement and displays its position in real time on the DRO screen.
When turning a diameter, it’s important to remember that the X-axis reads the tool position from the spindle centerline, meaning the value shown reflects the radius, not the diameter. However, most DROs can be configured to read in diameter mode, which is often preferred—it will automatically double the travel to show the actual change in part diameter. The Z-axis simply shows how far the tool has moved along the length of the part. You can zero either axis at any point, allowing you to reference relative positions for features like shoulders, grooves, or thread start locations.
To use the DRO effectively, always zero your axes after touching off the workpiece or locating a feature, and double-check which mode (radius or diameter) the X-axis is set to. If you need to cut a series of features to the same depth or length, the DRO lets you return to that position precisely without needing to manually mark or measure each cut. For safety, avoid relying solely on the DRO without verifying your tool clearance—especially during setup or when approaching shoulders, bores, or parting operations.
Quick Start Guide
Main Controls
- Power Switch / E-stop – Powers the machine on or off and stops the machine immediately in case of emergency.
- Spindle Direction Selector – Chooses between forward and reverse spindle rotation.
- Spindle Speed Levers (Gearbox) – Sets spindle RPM by selecting a gear combination (refer to posted chart).
- Chuck – Holds the workpiece; jaws must be fully tightened before use.
Movement Controls
- Carriage Handwheel (Z-axis) – Moves the tool left/right along the bed.
- Cross Slide Handwheel (X-axis) – Moves the tool in and out toward the spindle centerline.
- Compound Slide – Allows angular tool movement, used for threading and fine tapering.
- Tailstock Handwheel – Advances the tailstock quill, often used for drilling operations.
- Tailstock Lock – Secures the tailstock in position on the bed.
Feed & Threading
- Feed Selector Lever – Switches between feed and threading modes.
- Power Feed Lever – Engages power feed (Z or X axis, not both simultaneously).
- Threading Dial – Used to time half-nut engagement for imperial threading.
- Half-Nut Lever – Locks carriage to the leadscrew for threading operations.
Tooling & Setup
- Quick-Change Tool Post – Holds tool holders; locks tools quickly with a cam lever.
- Tool Height Adjustment – Achieved by adjusting the knurled nut on the tool holder.
- Chuck Key – Used to tighten or loosen the chuck; must be removed before starting.
- Coolant Valve & Hose – Controls coolant flow to the cutting area. See the Coolant page for more info.
Digital Readout (DRO)
- X-axis (Cross Slide) – Displays tool position across diameter.
- Z-axis (Carriage) – Displays tool position along the bed.
- DRO can be zeroed after setting up the tool and can display in inches or mm.
Safety
Operating a lathe requires full attention, proper technique, and strict adherence to safety protocols. The high rotational speeds, sharp tools, and exposed moving components present significant risk if handled carelessly. Whether performing turning, facing, drilling, or threading, these safety rules apply at all times.
General Safety Rules
- Never leave the machine running unattended.
- Always wear safety glasses and steel-toed shoes.
- Tie back long hair, remove dangling jewelry, and avoid loose clothing.
- Keep all tools and personal items off the lathe and chip tray.
- Ensure all guards are in place and workpieces are securely clamped.
- Stop the machine completely before making adjustments or measurements.
- Only trained personnel may adjust internal gears or change chucks.
Lathe Hazards and Mitigations
| Hazard | Description | Mitigation |
|---|---|---|
| Entanglement | Hair, sleeves, or gloves caught in rotating parts | Tie back hair, avoid gloves, secure clothing, remove jewelry |
| Flying Chips | Hot, sharp metal chips can strike the eyes or skin | Wear safety glasses with side shields, use a chip shield or brush |
| Sharp Edges | Cutting tools and fresh cuts can cause lacerations | Handle tools carefully, deburr parts before handling |
| Pinch Points | Between moving parts like chuck, carriage, and toolpost | Keep hands clear, use handles and levers, avoid distractions |
| Tool Breakage | Incorrect tool setup or feed/speed settings | Use correct tool geometry, center height, and refer to feed/speed charts |
| Chucking Failure | Poor workholding can eject the part | Always use the proper chuck jaws, secure work fully, test by rotating by hand |
| Overextension | Poor posture or reach during machining | Position yourself properly, use tailstock or rests to support long parts |
| Hot Surfaces | Chips, tools, and workpieces heat up quickly | Use chip brushes, gloves (only after power-off), and allow time to cool |
| Noise Exposure | Prolonged operation may exceed safe noise levels | Wear hearing protection if working near multiple machines or for long periods |
| Electrical Hazards | Damaged cords or tools | Inspect cords/tools before use, report any issues immediately |
| Incorrect Spindle Speed | Can damage tools or eject parts | Use RPM formula: (3 × cutting speed in ft/min) ÷ diameter (in); verify chart values |
| Incorrect Gear Setting | Thread pitch errors or drive failures | Only staff should change internal gears; confirm settings before threading |
| Manual Tool Contact | Touching rotating tools or workpieces | Never reach over a rotating chuck; stop machine fully before contact |
| Part Slippage or Ejection | Due to improper tightening or orientation | Check chuck tightness, orientation, and use tailstock for long work |
| Fatigue & Inattention | Leading cause of preventable injury | Take breaks, focus fully on one task at a time, and ask for help if unsure |
Special Considerations
- Students or new users must be trained and supervised before operating the lathe alone.
- Chuck changes and internal gear adjustments are restricted to trained staff only.
- Clean the area after each job, wiping down the bed, toolpost, and surrounding bench.
Quick Start Guide
1. Pre-Operation Checklist
- Ensure the work area is clean and the E-stop is released.
- Verify that the chuck key has been removed.
- Check that the tool is secure in the holder and set to center height.
- Confirm that the toolpost and carriage locks are tight.
- Set spindle direction (forward or reverse).
- Inspect for any loose parts, guards, or dangling clothing.
2. Workholding and Setup
- Use minimum stickout for both tools and workpieces.
- Ensure work is securely clamped in the chuck.
- For long stock, use tailstock support or a steady rest.
- Manually rotate the chuck to confirm tool and workpiece clearance.
- Align and square the toolpost if needed.
3. DRO and Axis Reference
- Z-axis: along the spindle (in/out).
- X-axis: across the part (diameter direction).
- Zero the DRO after touching off with the cutting edge.
- Use the formula: RPM = (3 × Cutting Speed in ft/min) ÷ Diameter (in)
- Refer to the speed and feed chart posted behind the lathe.
- Always apply cutting fluid for steel and tough materials.
5. Tool Selection Tips
- Use sharp, properly oriented tools (left- or right-hand tools should be labeled).
- Ensure parting tools are square, centered, and well-supported.
- Use short boring bars for shallow holes and larger diameter bars for deeper cuts.
- Position knurling tools directly over centerline and feed slowly and steadily.
6. Common Operations
- Facing: Move tool from the outer edge toward the center using constant feed.
- Turning: Set proper depth of cut and feed rate; apply coolant as needed.
- Parting: Feed slowly with minimal pressure; ensure correct tool alignment.
- Drilling: Use a center drill first; peck drill and evacuate chips regularly.
- Threading: Select correct gears, use the threading dial, and do a scratch pass to confirm pitch.
7. Safety Reminders
- Never leave the machine running unattended.
- Always wear safety glasses and steel-toed boots.
- Keep hands and tools clear of all rotating parts.
- Power down and lock out before performing any maintenance or changing chucks or gears (staff only).
Modes of Movement
Manual Feed
Most cuts are performed using the handwheels to move the carriage (Z-axis) or cross-slide (X-axis). Precision comes from smooth, consistent motion.
Power Feed
Threading on the King KC-1440ML lathe uses the threading feed system, which synchronizes the carriage movement with the spindle rotation via the leadscrew. This is activated by engaging the half-nut lever, which locks the carriage to the rotating leadscrew, moving the tool at a fixed rate based on the gear settings. Unlike normal power feed, threading feed ensures that the tool follows the exact path required to cut threads with a consistent pitch.
Before threading, the operator must use the threading chart on the lathe to select the correct gearbox settings for the desired thread pitch (metric or imperial). Once the correct gears are engaged, the threading dial (used for imperial threads) helps time when to engage the half-nut lever so that the tool always begins its cut in the same position on each pass. For metric threads, the half-nut must typically remain engaged for the entire process, and the tool is retracted using the cross-slide and repositioned with the compound.
Proper setup is critical. The tool must be square to the workpiece and on center, with the lathe running at very low RPM to allow precise control and safe engagement. A scratch pass is always recommended first to verify pitch with a thread gauge. After each pass, the cross-slide is retracted, and the compound is advanced slightly (if cutting at an angle) before the next pass. The threading feed system requires focus and coordination, so students must ask for assistance if unsure, especially before engaging the half-nut.
Threading Feed
The power feed system on the King KC-1440ML lathe provides smooth, consistent motion of the carriage or cross-slide by mechanically driving the feed shafts with the spindle’s rotation. This system is used for general turning and facing operations where uniform surface finish is important. It differs from threading feed in that it uses a separate feed rod (not the leadscrew), and the movement is not synchronized to the spindle’s rotational position—making it ideal for roughing, finishing, and basic cuts but not thread cutting.
Power feed can be activated along either the Z-axis (longitudinal feed) or the X-axis (cross feed) using the feed direction lever. The direction selector and feed rate knobs allow operators to fine-tune how quickly the tool advances into the workpiece. It's essential to select the correct feed rate for the material and operation to avoid excessive tool pressure or poor finish. Always check that only one feed direction is engaged at a time, and never force the levers—use smooth, deliberate movements.
Before starting a power feed operation, ensure all tools are clear of the workpiece and that the machine is running at a safe RPM. Watch the motion carefully—never walk away while the lathe is feeding. If you need to stop immediately, use the feed disengage lever, or hit the E-Stop in an emergency. Power feed is one of the best ways to achieve professional-quality surface finishes when used correctly, but it still requires constant attention and judgment from the operator.
Locking Mechanisms
The King KC-1440ML lathe includes several manual locking mechanisms to prevent unintended movement during critical operations. The carriage lock, located on the front-left of the carriage near the apron handwheel, is used to immobilize the carriage during facing, parting, or when precision depth is required. The tailstock lock is located on the base of the tailstock and secures it to the lathe bed—used when supporting long workpieces or during drilling operations. The compound slide lock, found on the top of the compound near its swivel base, prevents unwanted rotation or movement during chamfering and threading.
How Cutting Happens
The workpiece spins at a speed determined by its material, diameter, and operation type.
The cutting tool is gradually advanced into the workpiece to remove material, creating chips.
Different tools and operations (turning, facing, boring, knurling, etc.) affect how the cut engages the material.
- Turning removes material from the diameter.
- Facing creates a flat surface at the end of the part.
- Drilling and boring create or enlarge internal features.
- Parting and threading require rigid setup and accurate feed timing.
Feed & Speed
Spindle Speed (RPM)
Spindle speed on the King KC-1440ML lathe determines how fast the workpiece rotates and plays a crucial role in tool life, surface finish, and overall machining success. The recommended formula for calculating spindle speed (in RPM) is:
RPM = (3 × Cutting Speed) ÷ Diameter,
where cutting speed is in surface feet per minute (SFM) and diameter is in inches. Cutting speed varies by material—for example, mild steel is often cut at 100 SFM, while aluminum can be 300 SFM or more. Always refer to the Feeds and Speeds Chart mounted on the backboard of each lathe in the Brunsfield Centre to find the correct cutting speed for your material and tooling. Choosing the right RPM helps avoid overheating, premature tool wear, and poor finishes. When unsure, start with a slower speed and increase cautiously, and always use cutting fluid or coolant, especially when machining steel or stainless.
Feed Rate is how quickly the tool is advanced into the work.
- Must be matched to the tool geometry and material.
- Too fast can break the tool; too slow can result in rubbing instead of cutting.
- Since most operations are primarily manual getting the right feedrate takes time and practice. Ask a staff member for advice if you are unsure.
Depth of Cut (DOC)
Depth of Cut (DOC) is the distance the cutting tool penetrates into the workpiece during a single pass, and it directly affects tool load, chip formation, and surface finish. On the King KC-1440ML lathe, DOC is typically measured in thousandths of an inch (0.001"). For general roughing operations, a depth of 0.020" to 0.060" is common, depending on the material and setup rigidity. For finishing cuts, a lighter DOC of 0.002" to 0.010" is recommended to produce a smoother surface and reduce tool pressure.
Always refer to the Depth of Cut and Feed Rate chart posted above each lathe in the Brunsfield Centre to determine the appropriate values for your specific operation. Taking too deep a cut can overload the tool and reduce accuracy, while too shallow a cut may cause rubbing instead of effective material removal. When unsure, it’s best to start with a lighter cut and increase incrementally based on tool and material behavior.
See a full list of lathe operations and their procedures here.
Facing (Class 2)
Facing is the process of creating a smooth, flat surface on the end of a cylindrical workpiece. It is often the first operation performed when preparing stock
Turning (Class 2)
Turning is the process of removing material from the outer diameter of a rotating workpiece using a stationary cutting tool. It is commonly used to reduce diameter, create smooth cylindrical surfaces, and produce features like shoulders or tapers.
Parting (Class 5)
Parting is the process of cutting off a section of a workpiece using a thin tool that moves perpendicularly into the rotating material. It is one of the most sensitive and potentially hazardous lathe operations.
Drilling (Class 2)
Drilling on the lathe involves feeding a stationary drill bit into a rotating workpiece using the tailstock. This ensures perfectly concentric holes and is commonly used before boring, reaming, or threading.
Boring (Class 3)
Boring is the process of enlarging and finishing an existing hole using a single-point cutting tool. It is used for precision internal diameters, improved surface finish, or concentricity relative to the lathe spindle.
Knurling (Class 3)
Knurling is the process of impressing a textured pattern onto the surface of a cylindrical workpiece using hardened knurling wheels. It is often used to create grippable surfaces on handles or knobs. - Hazards: Pinch points, hot surfaces
Threading (Class 3)
Threading on the King KC-1440ML lathe involves using the leadscrew and half-nut lever to synchronize the tool movement with spindle rotation, allowing you to cut precise threads on a rotating workpiece.
Reaming (Class 3)
Reaming is used to finish and precisely size an existing hole. It does not remove large amounts of material—instead, it refines the surface finish and brings the hole to a tight tolerance.
Power Feed (Class 3)
The KC-1440ML lathe features powered movement of both the carriage (Z-axis) and cross-slide (X-axis) via an integrated feed rod and apron control levers. Power feed improves surface finish consistency and operator comfort during long cuts.
Changing the Chuck (Class 5)
🔒 Staff-Only Operation
Changing the chuck on the KC-1440ML involves removing and replacing a heavy, precision-mounted component. Due to the risk of injury and machine damage, this procedure must only be performed by trained staff.
Changing Jaws (Class 4)
Chuck jaws must be changed carefully and in matched order to ensure safe gripping and proper centering. This operation requires attention to jaw numbering, scroll alignment, and safe handling of heavy, sharp components.
Changing Tool Holder (Class 2)
Tool holders on the King lathes are mounted via a quick-change dovetail toolpost. Swapping them properly ensures safe cutting, accurate tool height, and secure engagement.
Adjusting the Tool Post (Class 2)
The tool post must be square to the workpiece and firmly secured to ensure clean, accurate cuts and safe operation. Improper alignment or over-tightening can cause chatter, tool deflection, or damage to components.
Changing Inserts on Indexable Tooling(Class 2)
Indexable tools use replaceable carbide inserts that can be rotated or flipped when worn. Proper insert changes reduce tool wear, improve finish, and keep your cuts accurate and consistent.
Changing Speed Gear (Class 5)
🔒 Staff-Only Operation
This procedure involves changing the intermediate drive gear inside the headstock’s gear cover. It's required to achieve certain thread pitches or feed rates, especially when threading metric or special imperial threads. Due to exposure to rotating components and alignment risks, this is a staff-only operation.
Tools
Left Hand Turning Tool
Cuts from left to right when facing the operator; typically used when feeding the carriage away from the chuck.

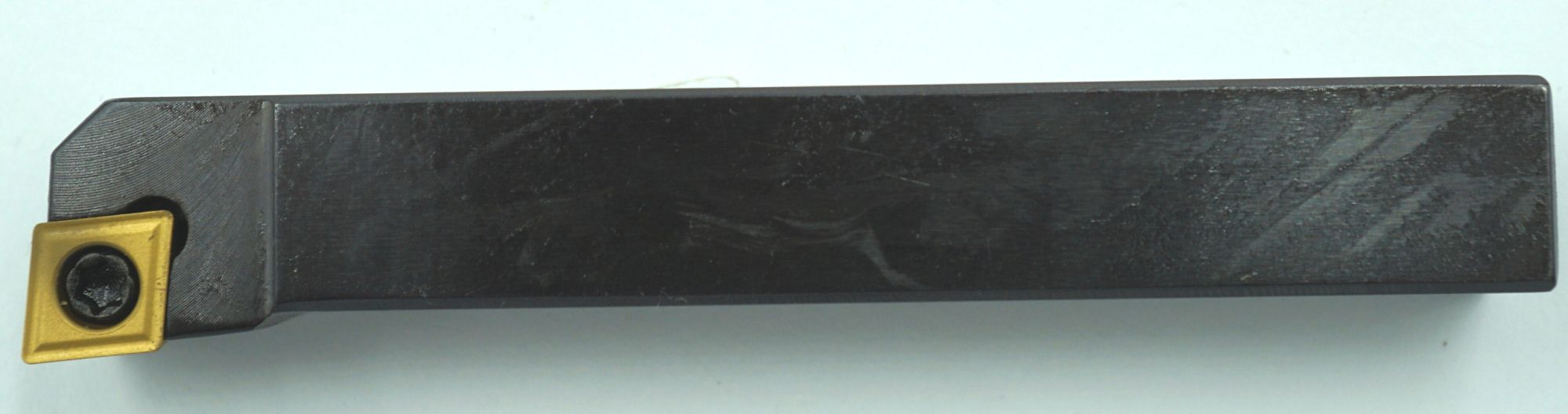

Right Hand Turning Tool
Designed to cut from the outer diameter toward the center of the part when facing the end surface.

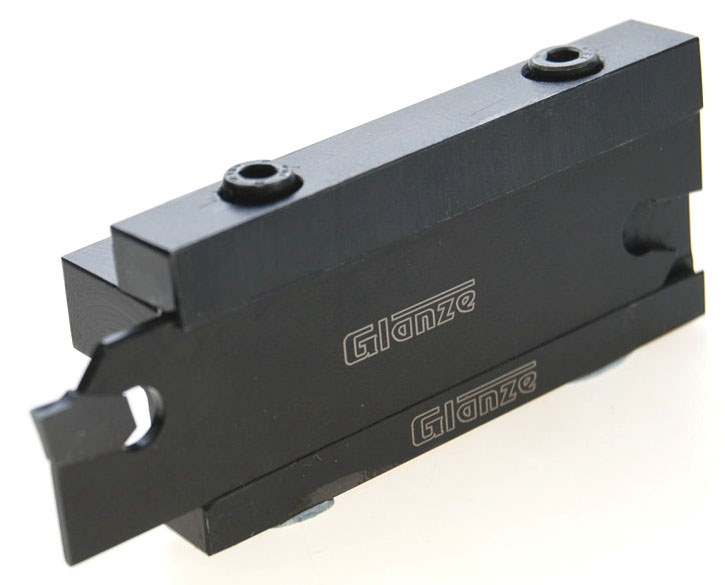

Parting Tool
A thin blade-like tool used to cut off (part) a finished section from a workpiece or to create grooves.
Knurling Tool
Forms a textured pattern on the part’s surface by pressing hardened rollers into the work while rotating.

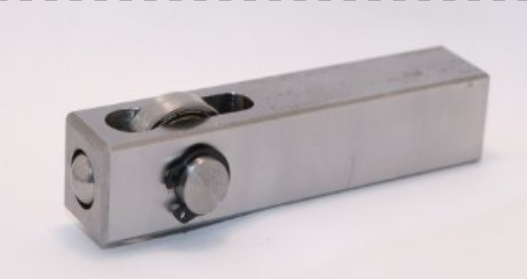

Burnishing Tool
A smooth, hardened roller or ball tool that compresses the metal surface to produce a polished finish.

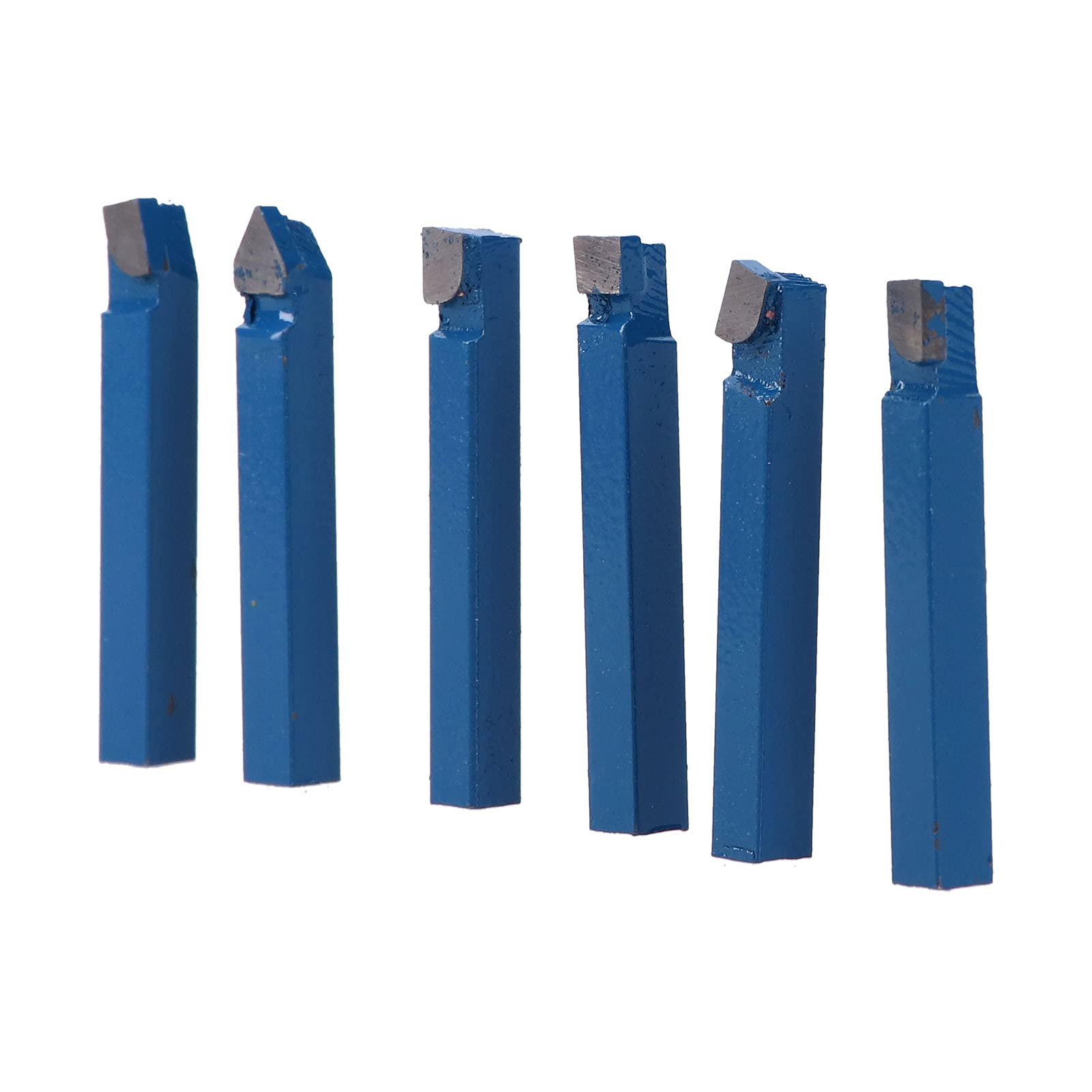

Cemented Carbide Tools
Cemented Carbide Tools are versatile and easily sharpened, used for general turning, facing, and threading.

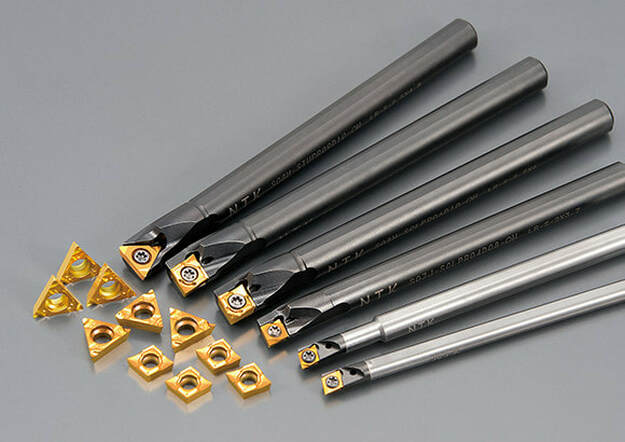

Boring Bars
Used to enlarge and finish internal diameters with precision, often following a drilled pilot hole. Drills
Used to make initial holes in a workpiece; mounted in the tailstock chuck for axial drilling.

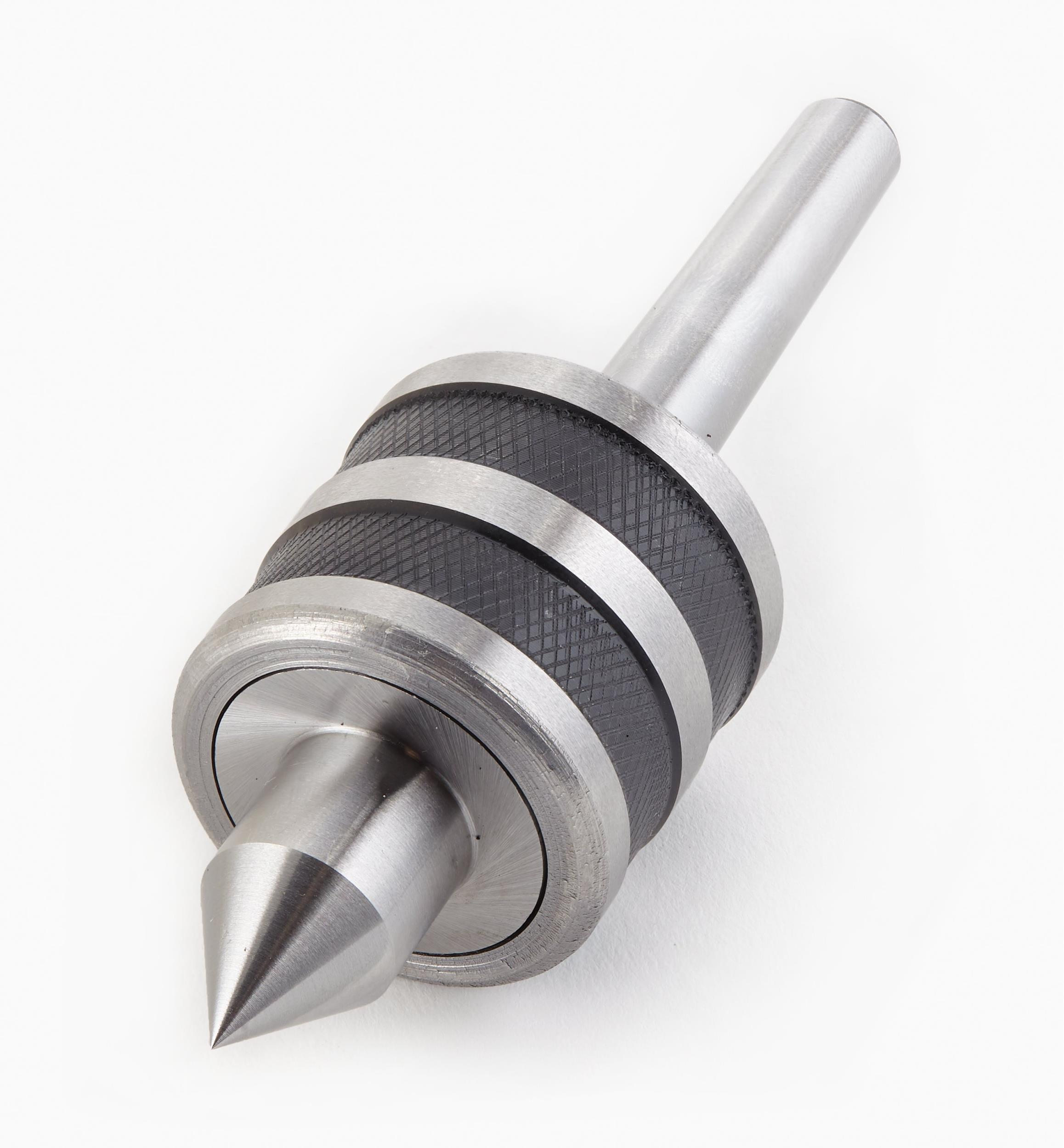

Live Centre
A tailstock-mounted center with a bearing that rotates with the part, providing support during turning.

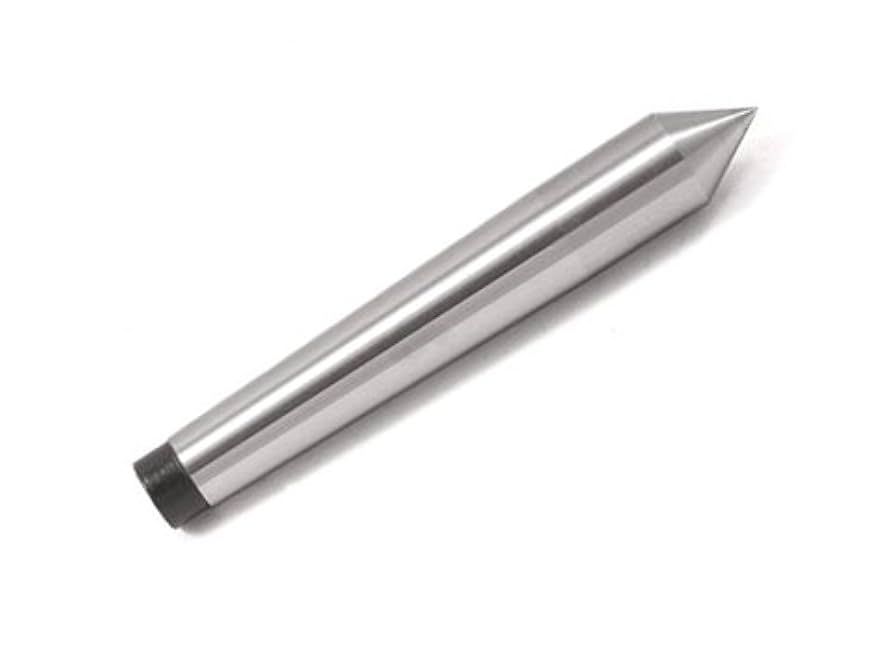

Dead Centre
A fixed-point support mounted in the tailstock or headstock that does not rotate with the part.
Lathe Chip Identification and Safety

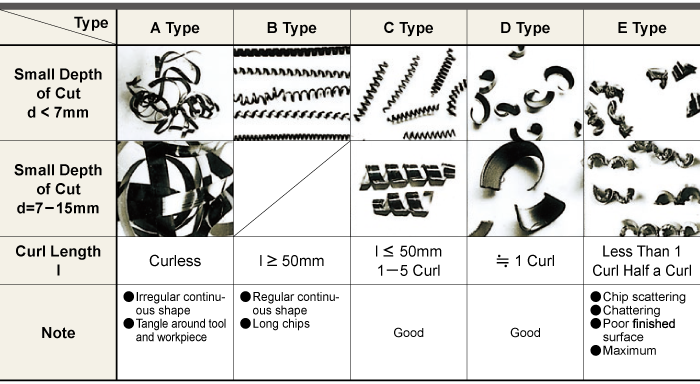

Lathe chips can give useful information about how the cut is performing. Chip shape is affected by the material, cutting speed, feed rate, depth of cut, tool geometry, insert/chipbreaker style, coolant, and tool condition. The goal is usually to produce short, controlled chips that do not wrap around the part, tool, or operator.
Why Chip Shape Matters
Good chip control helps improve:
| Area | Why it matters |
|---|---|
| Safety | Long stringy chips can wrap around the chuck, workpiece, tool, or operator. |
| Surface finish | Poor chip formation can cause chatter, rubbing, or rough surfaces. |
| Tool life | Bad chips may indicate incorrect speeds/feeds, dull tooling, or poor tool engagement. |
| Machine cleanliness | Short chips are easier and safer to clean up. |
Common Lathe Chip Types
A Type — Tangled / Bird-Nest Chips
These chips are long, irregular, and often curl into a tangled mess around the tool or workpiece.
Usually indicates:
- Poor chip control
- Too light of a cut
- Incorrect feed or speed
- Tool geometry not breaking the chip properly
Safety concern:
These chips are dangerous because they can wrap around the spinning workpiece or tool.
Action:
Stop the machine before clearing chips. Do not pull chips by hand while the lathe is running.
B Type — Long Continuous Chips
These chips come off as long, regular spirals or ribbons.
Usually indicates:
- Continuous cutting
- Chips are not breaking
- Feed/depth of cut may be too low
- Chipbreaker may not be engaged properly
Safety concern:
Long chips can become sharp and whip around the workpiece.
Action:
Adjust the cut if possible to encourage chip breaking. Ask a supervisor if long chips keep forming.
C Type — Short Controlled Spiral Chips
These are short curled chips, often forming several small spirals.
Usually indicates:
- Good chip control
- Stable cutting
- Proper feed/depth of cut
- Chipbreaker is working correctly
This is generally one of the preferred chip types.
D Type — Short C-Shaped / Half-Curl Chips
These chips are short, curved pieces that break cleanly.
Usually indicates:
- Good chip breaking
- Stable cutting conditions
- Safer and easier cleanup
This is also generally a preferred chip type.
E Type — Small Broken / Fragmented Chips
These chips are very small, scattered, or broken into tiny pieces.
May indicate:
- Excessive feed or depth of cut
- Chatter or vibration
- Poor surface finish
- Tool wear or poor tool setup
- Cutting conditions may be too aggressive
Action:
Check for chatter, noise, poor finish, or tool damage. Reduce cutting load or ask for help if the machine sounds unstable.
Safe Chip Handling Rules
Never remove chips with bare hands. Lathe chips are often sharp and hot.
Before clearing chips:
- Stop the spindle.
- Wait for the chuck and workpiece to fully stop.
- Use a brush, pliers, or chip hook.
- Dispose of chips in the proper metal chip bin.
- Report tangled chips, chatter, or poor cutting conditions to a supervisor.
Do not use compressed air to blow chips around the lathe, since this can send sharp chips into eyes, hands, or machine components.
General Goal
For most lathe operations, the preferred chip shape is a short, controlled chip, similar to C Type or D Type chips. Long continuous chips, tangled chips, or scattered broken chips are signs that the cutting conditions may need to be adjusted.
Indicating on a 4-Jaw Chuck
Unlike a 3-jaw chuck, which self-centers, a 4-jaw chuck allows for independent adjustment of each jaw, making it ideal for holding irregular or non-cylindrical parts — but it requires careful manual alignment. To center a round or square part in a 4-jaw chuck, you must use a dial indicator to measure runout and adjust each jaw until the part is properly aligned.
For round parts, position the indicator on the OD (outside diameter) near the chuck jaws. Rotate the chuck by hand and note the high and low points. Adjust opposing jaws incrementally, tapping the part gently and retightening until the needle shows minimal runout — ideally within 0.001" to 0.002" for precision work. For square parts, indicate off one flat face and alternate adjustments on each side until the piece sits evenly. When working with hexagonal or asymmetrical parts, pick two opposing flats or features that can be reliably indicated, and adjust until they are symmetrical relative to spindle center.
For parts that can’t be centered (e.g., intentionally offset features or eccentric turning), use the indicator to set the desired intentional offset from center. Always verify both radial and axial alignment before cutting, and remember to tighten all jaws firmly once final positioning is achieved. Take your time — indicating is a skill that improves with practice and is essential when using a 4-jaw chuck safely and effectively.
