Sheet Metal Brake

About

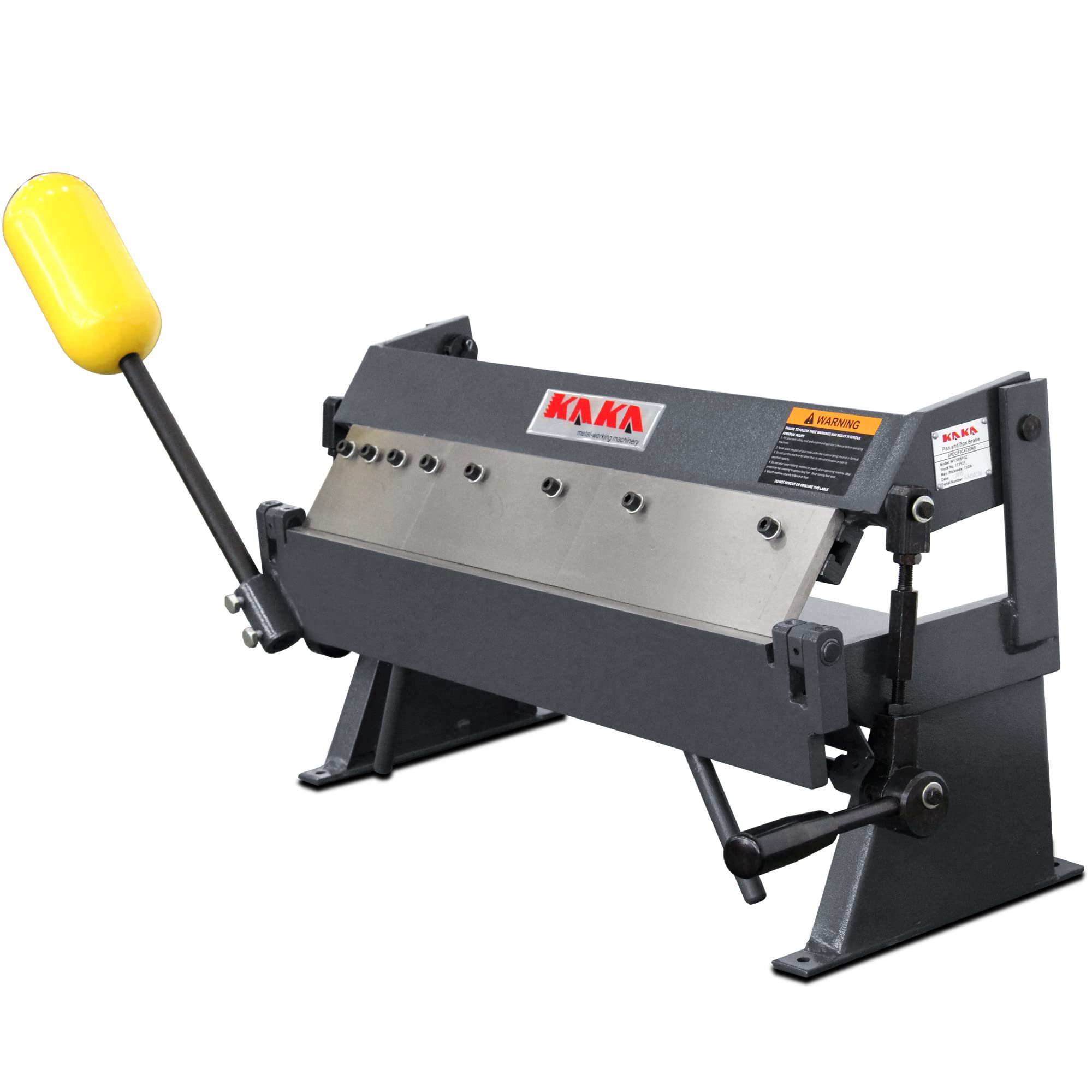

A smaller table-top sheet metal brake as seen in MTC.

A sheet metal brake is a tool used to bend and form sheet metal into desired angles and shapes. It allows precise, clean bends without damaging the metal, which is essential in metalworking and fabrication.

Machine Overview

• Type: Box & Pan Brake (also known as a finger brake)
• Materials Allowed: Mild steel, aluminum, and other non-hardened sheet metals
• Maximum Thickness: Steel: 16-18 gauge, Aluminum: 14-16 gauge
• Maximum Width: 4 Feet

Safety

• PPE Required: Safety glasses, closed-toe shoes, and no loose clothing near.
• Pinch Hazard: Keep hands and fingers clear of clamping bar and bending leaf.
• Do Not Force the Break: If the handle doesn’t move easily, the material is likely too thick.

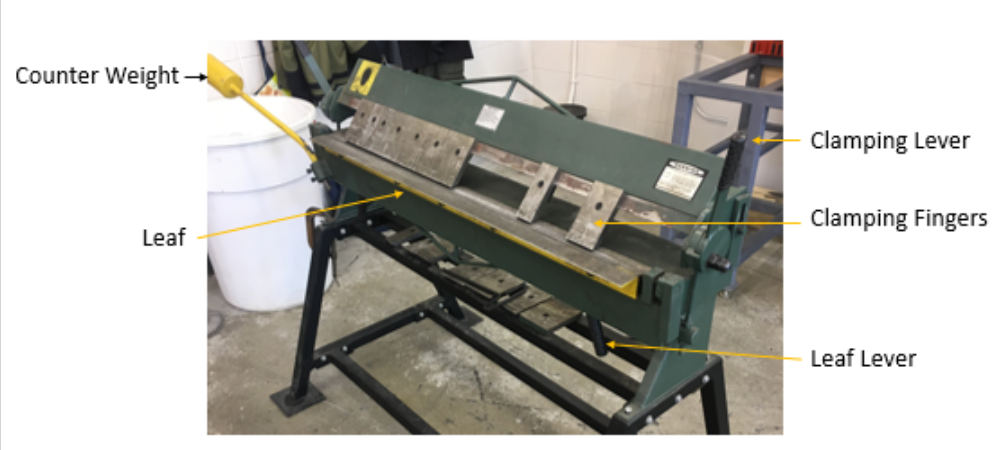

Brunsfield's larger freeestanding sheet metal brake.

Components

• Clamping Bar (Clamping the sheet)
• Bending Leaf (Lifts to bend the sheet)
• Removable fingers (Used to make box/pan shapes)
• Clamping Handle (Engages clamping bar)
• Bending Handle (Raises bending leaf)

Operation Procedure

1. Inspect the Machine

Begin by inspecting the sheet metal brake to ensure it is safe and ready for use. Check that all parts are clean, secure, and free from debris. Examine the machine for any signs of damage or misalignment that could impact its function or compromise safety during operation.

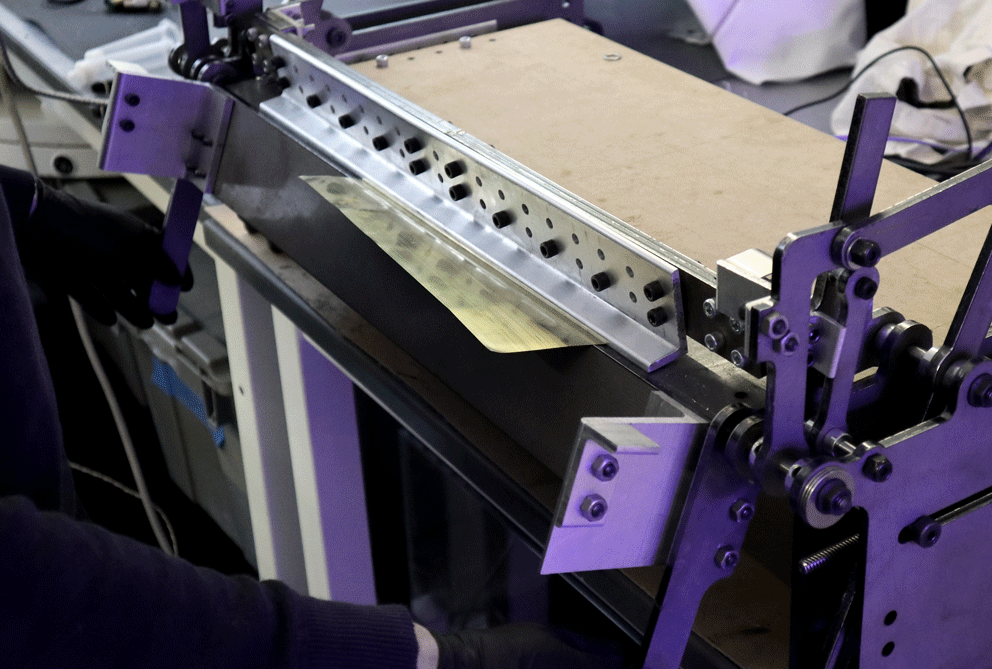

Operation of the brake.

2. Prepare Your Material

Measure and mark the bend line on your sheet metal using a scribe or a fine-tip marker. Confirm that the sheet is within the allowable thickness and width limits for the brake. Materials outside these limits may cause machine damage or result in poor-quality bends.

3. Set the Fingers (if needed)

If your project requires specific shaping—such as creating a box or pan—you will need to adjust the removable fingers. Remove only the necessary fingers and reposition them to match the required geometry. Ensure that gaps are left where bends will be made, particularly for side flanges or corner folds.

4. Insert the Sheet

Slide the sheet metal under the clamping bar, making sure the bend line is properly aligned with the edge of the bar. Accurate alignment is critical to ensure a clean and correctly positioned bend.

5. Clamp the Sheet

Pull the clamping handle down firmly to engage the clamping bar and hold the metal securely in place. The sheet should not shift during the bending process.

6. Make the Bend

Lift the bending leaf slowly and steadily to form the bend. Raise the leaf to the desired angle, and consider slightly overbending to compensate for any springback, which is the natural tendency of metal to relax slightly after being bent.

7. Release and Inspect

Once the bend is complete, lower the bending leaf and raise the clamping bar. Carefully remove the finished part and inspect it to ensure the bend meets your requirements. If the angle or alignment is off, assess whether a re-bend is appropriate or if adjustments are needed in your next attempt.

How to Change Fingers

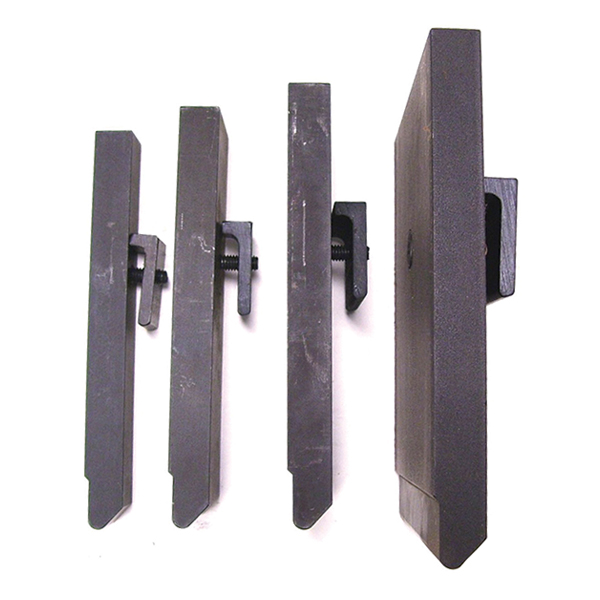

Side view of bender fingers. Different widths can be used to bend various geometries.

Changing the fingers on the sheet metal brake should only be done when the machine is not in use and the clamping bar is fully raised to avoid injury or damage. Follow these steps carefully to ensure proper setup and alignment:

1. Raise the Clamping Bar

Start by pulling the clamping handle to fully lift the clamping bar. This will expose the removable fingers and provide access for adjustment.

2. Loosen the Finger Bolts

Using the correct size allen key, loosen the bolts that secure the fingers in place. Be careful not to strip the bolts or leave any partially loose, as this can result in misalignment or instability during operation.

3. Remove or Slide Out Fingers

Gently lift or slide out the fingers from their slots. Only remove the fingers necessary to accommodate your planned bends. Avoid taking out more than needed, as this can compromise the integrity of the setup.

4. Insert Desired Finger Arrangement

Reposition the fingers in a layout that matches the shape and size of your intended workpiece. If you are forming a box or pan, ensure you leave adequate space for each bend by creating intentional gaps where needed.

5. Tighten Bolts Firmly

Once the fingers are in the correct configuration, tighten all bolts securely. Make sure each finger is seated evenly and is not loose. Loose fingers can shift during bending, resulting in inaccurate shapes or potential machine damage.

6. Check Alignment

To complete the setup, gently lower the clamping bar and verify that the new finger arrangement aligns properly with your workpiece. Double-check that the configuration will allow for clean bends without obstruction. Make adjustments as necessary before beginning your bend.

Common Mistakes

• Wrong Material Thickness: Check the gauge limit before starting. - The Brunsfield brake has a maximum thickness of 18 gauge (0.0478) for steel.
• Improper Finger Setup: Failing to set fingers correctly will prevent forming boxes or tight bends.
• Misalignment: Always double-check your bend line before clamping.
• Over/Underbending: Bend slowly and adjust as needed.

Maintenance & Reporting

• Degrease and oil once a month.
• Report loose handles, misalignment, or any damage to staff immediately.
• Clean the area after use. Remove all scraps and tools.
